Single Point Davit PAPH Type

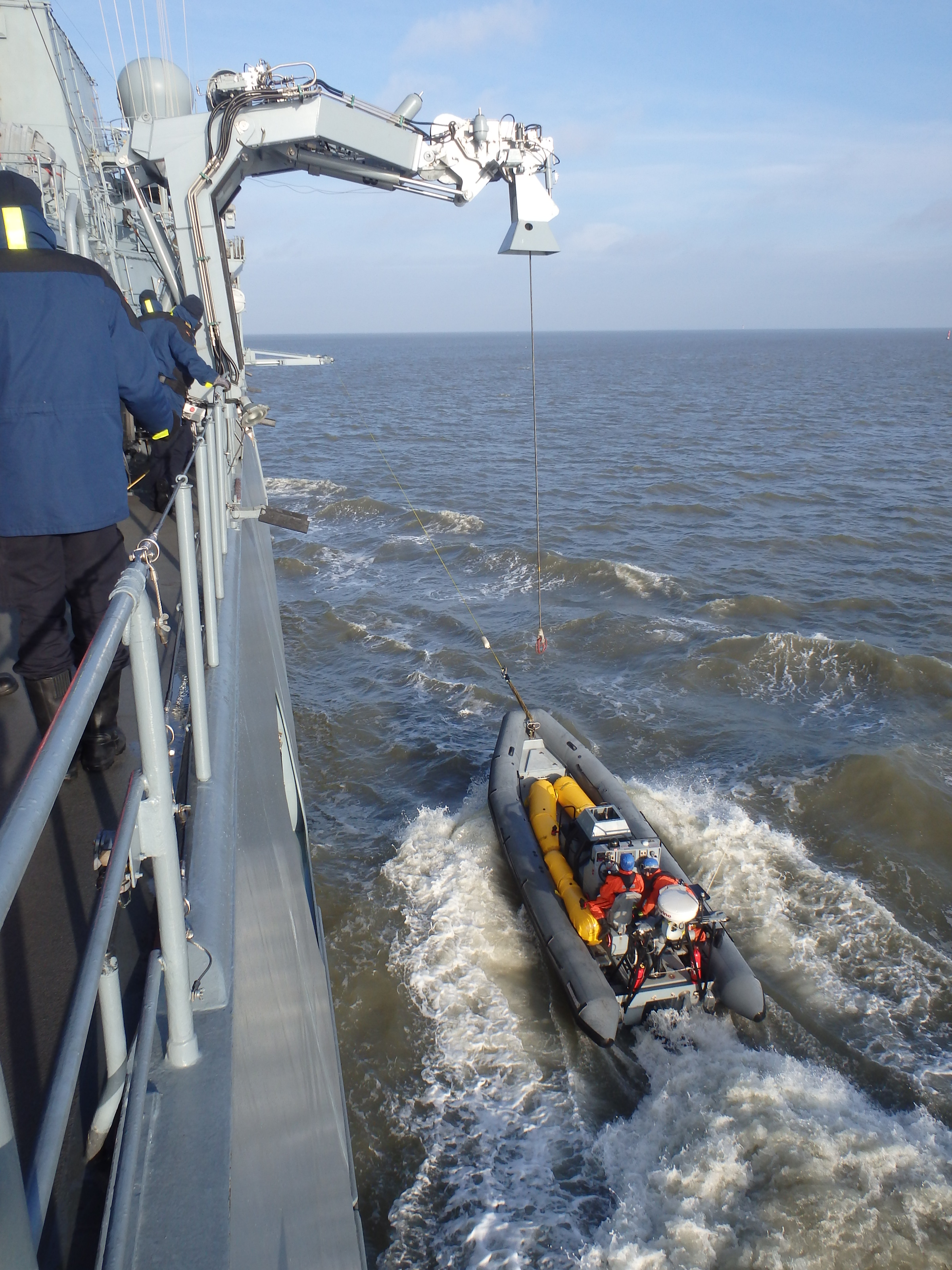

The PAPH Series is an anti-pendulation system with a fully integrated docking head. This unique davit is designed with an extra series of hinges that allow the system to go through an unparalleled range of movement and it is therefore ideal for a vessel where space is at a premium. The movements of the PAPH Series are computer controlled for collision control and the series is fully compatible with Vestdavit's Painter Boom systems.

Specifications

Approvals DNV. Other class societies on request.
Capacity 3000-20000 kg
Certificate CE marking according to the Marine Equipment Directive.
Optional Equipment Dynamic Shock Absorber, Wave Compensation System, Hydraulic Wire Puller, Hydraulic Limit Switch, Remote Control Operated PLC.
Power Hydraulic Power with stored power via accumulators in accordance with SOLAS.
Typical Users Pilot HQ Vessels, Major Warships (FF equivalent or greater).
