Dual Point Davits
Vestdavit’s innovative and robust dual point davits are engineered to handle substantial workboats and daughter craft, with lifting capacities of
up to 60 tons. These systems are equipped with advanced computer-assisted features, which support operators in performing safe launch and recovery operations, even in the most challenging sea conditions.
Our dual point davits leverage sophisticated technology to optimize control and precision, allowing operators to execute complex manoeuvres with enhanced safety. This dual fall technology is a cornerstone of our systems, as it significantly boosts security and stability for both the boat and crew. By ensuring balanced load distribution and minimizing sway, this feature protects equipment and personnel during high stakes operations.
Show more
H Davit
HN Davit
F Davit
FF Davit
F Davit
Download CAD File

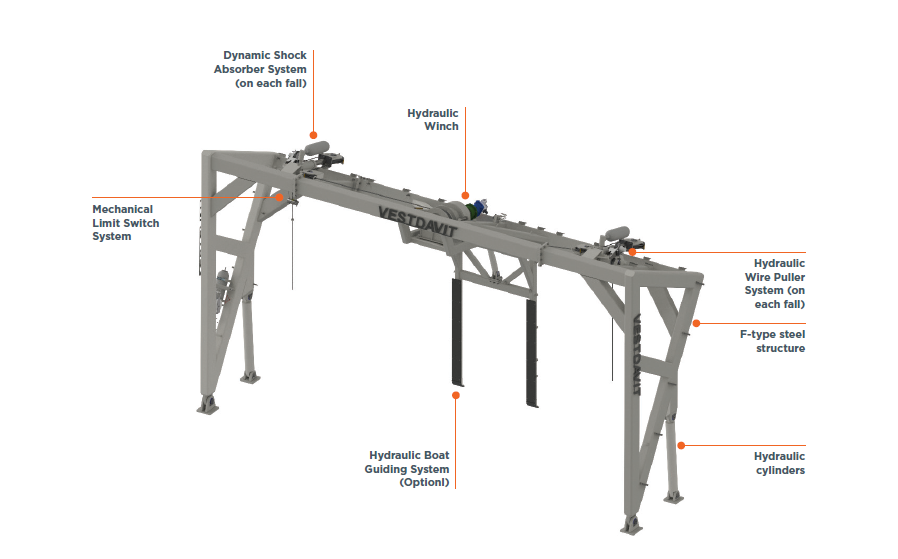

This system is engineered to meet the demanding operational needs of modern maritime environments, ensuring precision, reliability, and safety in both routine and emergency deployment scenarios. This design minimizes stress on the hull and structure of the boat, reducing wear and tear while enhancing the longevity of both the davit system and the vessels it supports. One of the key advantages of the F-Type system is its fully bespoke design, which allows it to be customized based on the Maximum Working Load (MWL) of the operator’s chosen payload. This adaptability ensures that the system seamlessly integrates with a variety of boat sizes, weights, and operational requirements, making it an ideal solution for navies, coast guards, offshore industries, and research vessels that require versatile and dependable launch and recovery capabilities. The F-Type davit is built in full compliance with the latest industry regulations and safety standards, including DNV-GL-498 dimensioning rules and safety coefficients.
Features
- Shock Absorber
- Constant Tension System
- Standard Keel Support
- Wire puller
- Limit switch
Optional Features
- Stainless steel fittings
- Control stand
- Control station
- Submerged HPU (or top mounted for outdoor placement)
- HPU stainless tank
- Soft starter
- Stainless steel starter for outdoor placement
- Remote Control (wired or wireless)
- Skid
- -40 degrees winterisation
Product Models
| Model | F-10000 |
|---|---|
| Med B Cert. | Yes |
| MWL | 10000 |
| Total travel (outreach) | 4522 |
| Inst. Height, Stored Pos (mm) | 5600 |
| Std. Max Hoist Speed (m/min) | 0-36 |
| Estimated Std Power Cons. (kW) | 120 |
| SOLAS | Yes |
| Opt Max Hoist Speed (m/min) | 0-50 |
* All data presented in this table are indicative and minor deviations may occur. Data may be subject to change based on final system configuration
ⓘ
All data presented in this table are indicative and minor deviations may occur.
Data may be subject to change based on final system configuration
