Single Point Davits
A single point davit is a compact and efficient launch and recovery system designed to handle small boats, life rafts, and other maritime equipment
using a single lifting point. These davits are widely used in the naval, offshore, commercial, search and rescue industries, offering reliable and safe deployment solutions even in challenging conditions.
Single point davits are a crucial component in the maritime industry, providing a fast, reliable, and safe solution for launching and recovering boats and life rafts. Whether used for emergency evacuations, rescue missions, or military operations, these davits enhance operational efficiency while ensuring the safety of personnel at sea.
Show more
PL Davit
PLR Davit
PLD Davit
PLi Davit
PAP Davit
PAPH Davit
PLA Davit
PLAR Davit
L Davit

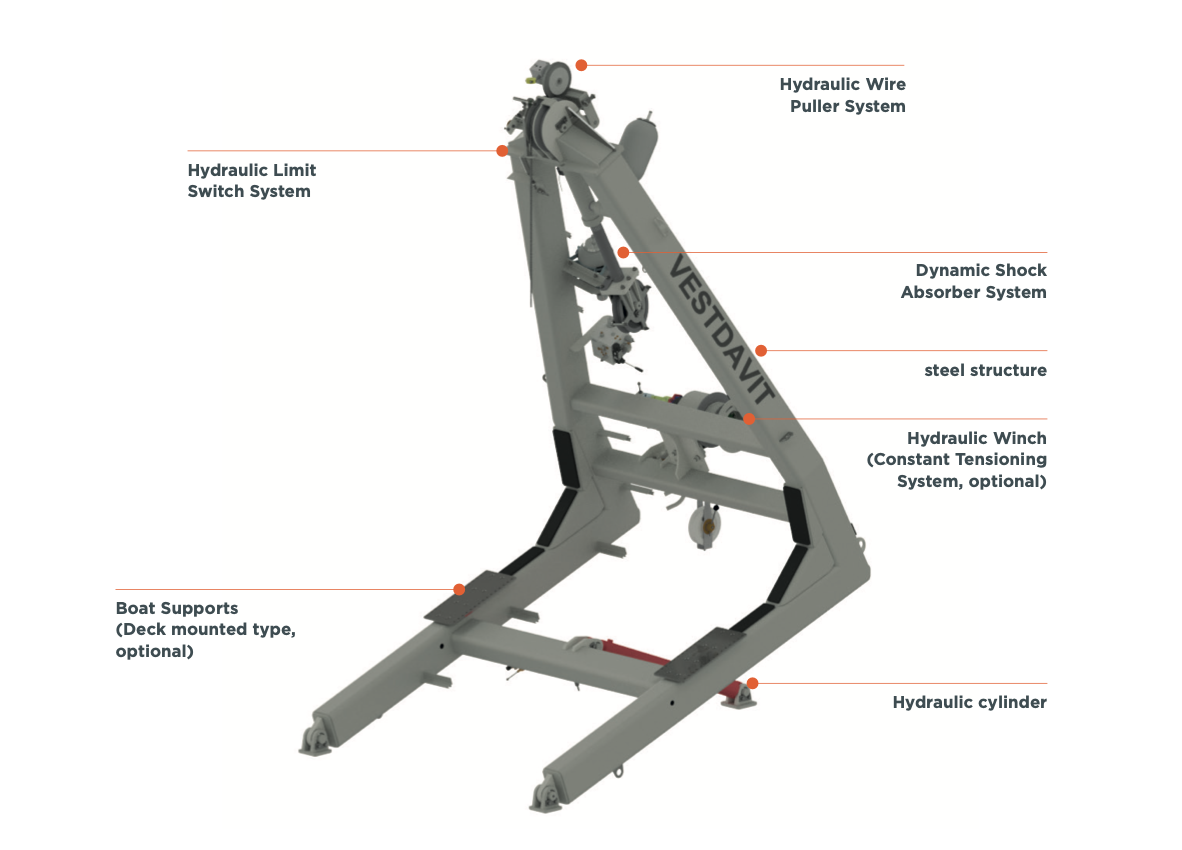

PL Davit
Download CAD File
Engineered for efficiency, this series is Vestdavit’s most compact davit solution, ensuring ease of transportation and installation. One of its key advantages is its ability to be transported within a standard 20-foot ISO container, which not only simplifies logistics but also significantly reduces both delivery time and costs. This makes the PL Series an ideal choice for organizations seeking a reliable, space-efficient, and cost-effective davit system without compromising on performance and adaptability.
Features
- Shock Absorber
- SOLAS
- Standard Keel Support
Optional Features
- Constant Tension System
- Stainless steel fittings
- Control stand
- Control station
- Submerged HPU (or top mounted for outdoor placement)
- HPU stainless tank
- Soft starter
- Stainless steel starter for outdoor placement
- Metallization
- Remote Control (wired or wireless)
- Skid Hydraulic Guiding arms
- Wire puller
- Limit switch
- Upgraded Winch Speed
- -40 degrees winterisation
PL Davit Specifications
| Approvals | DNV. Other class societies on request |
| Capacity | 1000-4000kg |
| Certificate | CE marking according to the Marine Equipment Directive |
| Optional Equipment | Hydraulic shockabsorber, Self Tension |
| Power | Hydraulic |
| Typical Users | Ferries, High Speed Ferries, Supply Vessels, Fishing Vessels and Merchant Vessels |
Product Models
| Model | PL-1500 | PL-2502 | PL-3600R |
|---|---|---|---|
| Med Cert. | Yes | Yes | Yes |
| MWL | 1500 | 2500 | 3600 |
| Total travel (outreach) | 2788 | 3245 | 3778 |
| Estimated Std Weight (kg) | 1150 | 2150 | 2700 |
| Std. Max Hoist Speed (m/min) | 0-36 | 0-36 | 0-36 |
| Estimated Std Power Cons. (kW) | 21 | 31 | 43 |
| SOLAS | Yes | Yes | Yes |
| Opt Max Hoist Speed (m/min) | 0-50 | 0-50 | 0-60 |
ⓘ
All data presented in this table are indicative and minor deviations may occur.
Data may be subject to change based on final system configuration
