Dual Point Davits
Vestdavit’s innovative and robust dual point davits are engineered to handle substantial workboats and daughter craft, with lifting capacities of
up to 60 tons. These systems are equipped with advanced computer-assisted features, which support operators in performing safe launch and recovery operations, even in the most challenging sea conditions.
Our dual point davits leverage sophisticated technology to optimize control and precision, allowing operators to execute complex manoeuvres with enhanced safety. This dual fall technology is a cornerstone of our systems, as it significantly boosts security and stability for both the boat and crew. By ensuring balanced load distribution and minimizing sway, this feature protects equipment and personnel during high stakes operations.
Show more
H Davit
HN Davit
F Davit
FF Davit
FF Davit
Download CAD File

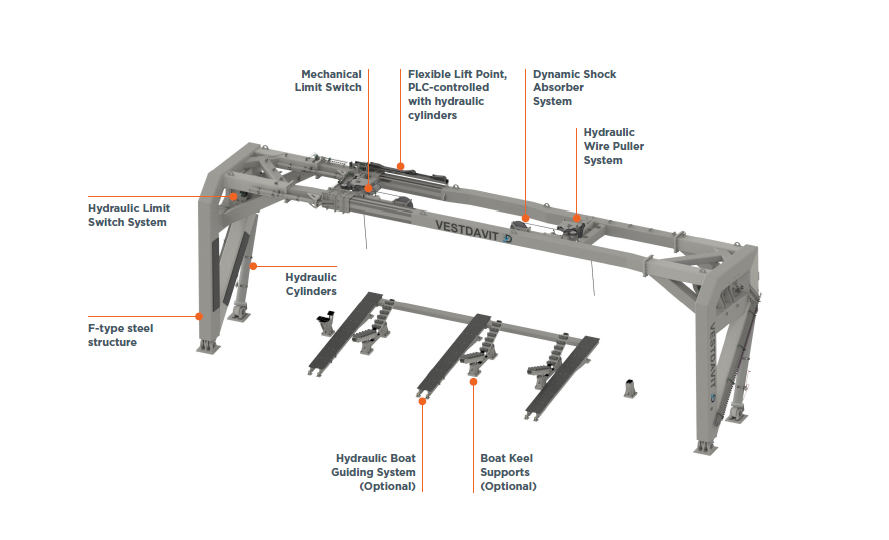

At its core is an innovative flexible hook distance system that enables seamless reconfiguration of the davit’s lifting points. This feature allows operators to quickly adapt between single-point and dual-point configurations, depending on the size and type of craft being launched or recovered. Whether managing smaller, lightweight boats or larger, heavier vessels, the FF series ensures reliable, secure handling without the need for manual adjustments or equipment changes. This flexibility is powered by integrated hydraulic cylinders and governed by a programmable logic controller (PLC), enabling automated transitions between configurations. The system’s intelligence and automation not only simplify operations but also increase efficiency and safety, particularly in dynamic marine environments.
Features
- Shock Absorber
- Constant Tension System
- Standard Keel Support
- Wire puller
- Limit switch
- Flexible hook distance
Optional Features
- Stainless steel fittings
- Control stand
- Control station
- Submerged HPU (or top mounted for outdoor placement)
- HPU stainless tank
- Soft starter
- Stainless steel starter for outdoor placement
- Remote Control (wired or wireless)
- Skid
- -40 degrees winterisation
Product Models
| Model | FF-10000 | FF-15000 | FF-30000 |
|---|---|---|---|
| Med B Cert. | Yes | Yes | No |
| MWL | 10000 | 15000 | 30000 |
| Total travel (outreach) | 4980 | 4142 | 6662 |
| Inst. Height, Stored Pos (mm) | 5614 | 6726 | 5936 |
| Std. Max Hoist Speed (m/min) | 0-30 | 0-30 | 0-30 |
| Hoist Speed (m/min) | 110 | 162 | 328 |
| SOLAS | Optional | Optional | No |
| Opt Max Hoist Speed (m/min) | 0-50 | 0-50 | 0-40 |
* All data presented in this table are indicative and minor deviations may occur. Data may be subject to change based on final system configuration
ⓘ
All data presented in this table are indicative and minor deviations may occur.
Data may be subject to change based on final system configuration
