Dual Point Davits
Vestdavit’s innovative and robust dual point davits are engineered to handle substantial workboats and daughter craft, with lifting capacities of
up to 60 tons. These systems are equipped with advanced computer-assisted features, which support operators in performing safe launch and recovery operations, even in the most challenging sea conditions.
Our dual point davits leverage sophisticated technology to optimize control and precision, allowing operators to execute complex manoeuvres with enhanced safety. This dual fall technology is a cornerstone of our systems, as it significantly boosts security and stability for both the boat and crew. By ensuring balanced load distribution and minimizing sway, this feature protects equipment and personnel during high stakes operations.
Show more
H Davit
HN Davit
F Davit
FF Davit
HN Davit
Download CAD File

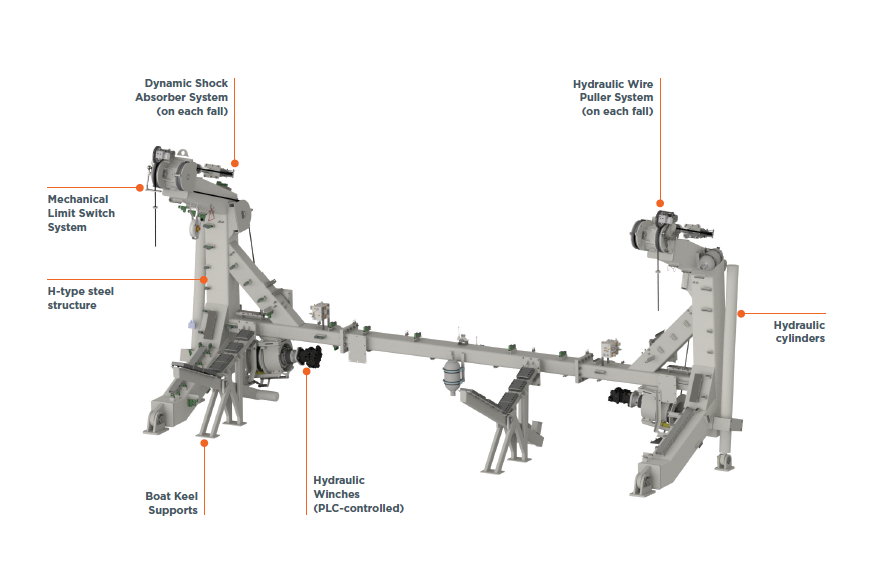

Designed for robust performance, the HN series features redundant equipment such as duplicated shock absorbers and constant tension winch systems on each fall line, ensuring superior reliability and safety even in rough sea states. This dual-fall setup enhances stability and control during boat handling operations, providing precise movement coordination critical for mission success. The structural H-frame design further contributes to operational robustness, allowing for the secure launch and recovery of heavy and sensitive payloads under demanding conditions. The HN series’ advanced functionality is its integration of a programmable logic controller (PLC), which governs synchronized fall movements and enables intelligent automation. This system supports automatic levelling of the boat or equipment during launch and recovery, reducing operator workload and minimizing the risk of human error.
Features
- Shock Absorber
- Constant Tension System
- Standard Keel Support
- Wire puller
- Limit switch
Optional Features
- Stainless steel fittings
- Control stand
- Control station
- Submerged HPU (or top mounted for outdoor placement)
- HPU stainless tank
- Soft starter
- Stainless steel starter for outdoor placement
- Remote Control (wired or wireless)
- Skid
- Flexible hook distance
- -40 degrees winterisation
Product Models
| Model | HN-5000 | HN-9003 | HN-9005 | HN-10000 |
|---|---|---|---|---|
| Med B Cert. | Yes | Yes | Yes | |
| MWL | 5000 | 9000 | 9000 | 10000 |
| Total travel (outreach) | 3479 | 4273 | 3540 | 5572 |
| Inst. Height, Stored Pos (mm) | 4053 | 5915 | 3993 | 5690 |
| Std. Max Hoist Speed (m/min) | 0-36 | 0-36 | 0-36 | 0-36 |
| Estimated Std Power Cons. (kW) | 60 | 120 | 120 | 136 |
| SOLAS | Yes | Optional | Optional | Optional |
| Opt Max Hoist Speed (m/min) | 0-50 | 0-50 | 0-50 | 0-50 |
* All data presented in this table are indicative and minor deviations may occur. Data may be subject to change based on final system configuration
ⓘ
All data presented in this table are indicative and minor deviations may occur.
Data may be subject to change based on final system configuration
