Single Point Davits
A single point davit is a compact and efficient launch and recovery system designed to handle small boats, life rafts, and other maritime equipment
using a single lifting point. These davits are widely used in the naval, offshore, commercial, search and rescue industries, offering reliable and safe deployment solutions even in challenging conditions.
Single point davits are a crucial component in the maritime industry, providing a fast, reliable, and safe solution for launching and recovering boats and life rafts. Whether used for emergency evacuations, rescue missions, or military operations, these davits enhance operational efficiency while ensuring the safety of personnel at sea.
Show more
PL Davit
PLR Davit
PLD Davit
PLi Davit
PAP Davit
PAPH Davit
PLA Davit
PLAR Davit

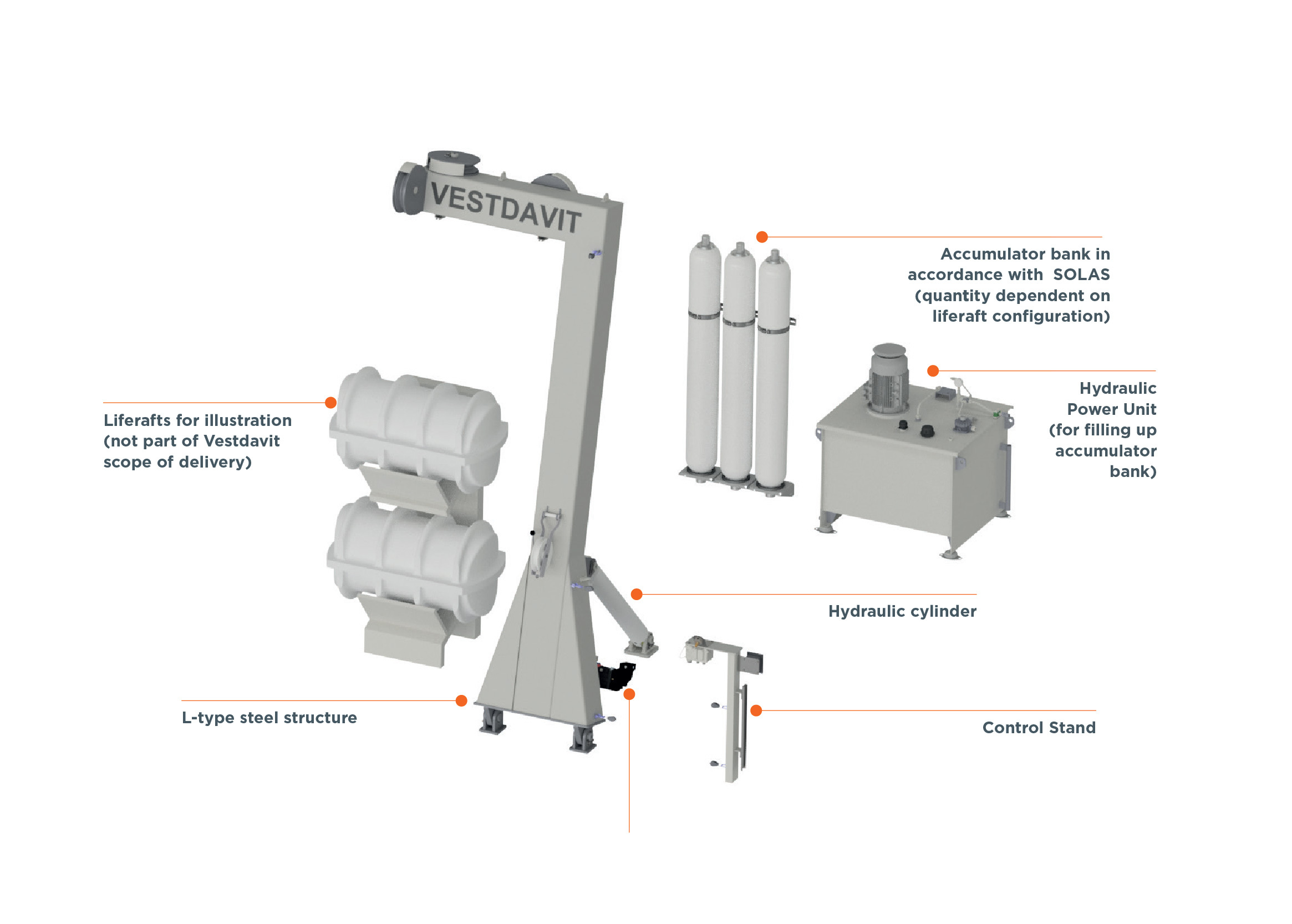

L Davit
L Davit
Download CAD File
Designed with reliability in mind, it ensures that evacuation procedures can be carried out seamlessly, even under the most challenging conditions. One of the outstanding features of the L davit is its ability to sequentially launch up to three life rafts, making it an invaluable safety asset for vessels with large crews or passenger capacities. This sequential deployment ensures an orderly and controlled evacuation process, reducing the risk of overcrowding and ensuring that life rafts are launched efficiently without delays. In the event of a complete vessel power failure, the L davit remains fully operational, allowing for manual or gravity-based deployment.
Features
- SOLAS
Optional Features
- Stainless steel fittings
- Submerged HPU (or top mounted for outdoor placement)
- HPU stainless tank
- Soft starter
- Stainless steel starter for outdoor placement
- Metallization
- -40 degrees winterisation
L Davit Specifications
| Approvals | DNV. Other class societies on request |
| Capacity | 1500-3500 kg |
| Certificate | CE marking according to the Marine Equipment Directive |
| Optional Equipment | CE marking according to the Marine Equipment Directive |
| Power | Hydraulically operated via stored power in compliance with latest SOLAS. HPU for the refilling of accumulators |
| Typical Users | Commercial & Military Vessels |
Product Models
| Model | L-2500 | L-3500 |
|---|---|---|
| Med Cert. | Yes | Yes |
| MWL | 2500 | 3500 |
| Total travel (outreach) | 3318 | 3214 |
| Inst. Height, Stored Pos (mm) | 3946 | 4318 |
| Estimated Std Weight (kg) | 1800 | 1900 |
| Std. Max Hoist Speed (m/min) | 0-18 | 0-18 |
| Estimated Std Power Cons. (kW) | 10 | 10 |
| SOLAS | Yes | Yes |
| Opt Max Hoist Speed (m/min) | - | - |
ⓘ
All data presented in this table are indicative and minor deviations may occur.
Data may be subject to change based on final system configuration
