Single Point Davits
A single point davit is a compact and efficient launch and recovery system designed to handle small boats, life rafts, and other maritime equipment
using a single lifting point. These davits are widely used in the naval, offshore, commercial, search and rescue industries, offering reliable and safe deployment solutions even in challenging conditions.
Single point davits are a crucial component in the maritime industry, providing a fast, reliable, and safe solution for launching and recovering boats and life rafts. Whether used for emergency evacuations, rescue missions, or military operations, these davits enhance operational efficiency while ensuring the safety of personnel at sea.
Show more
PL Davit
PLR Davit
PLD Davit
PLi Davit
PAP Davit
PAPH Davit
PLA Davit
PLAR Davit
L Davit

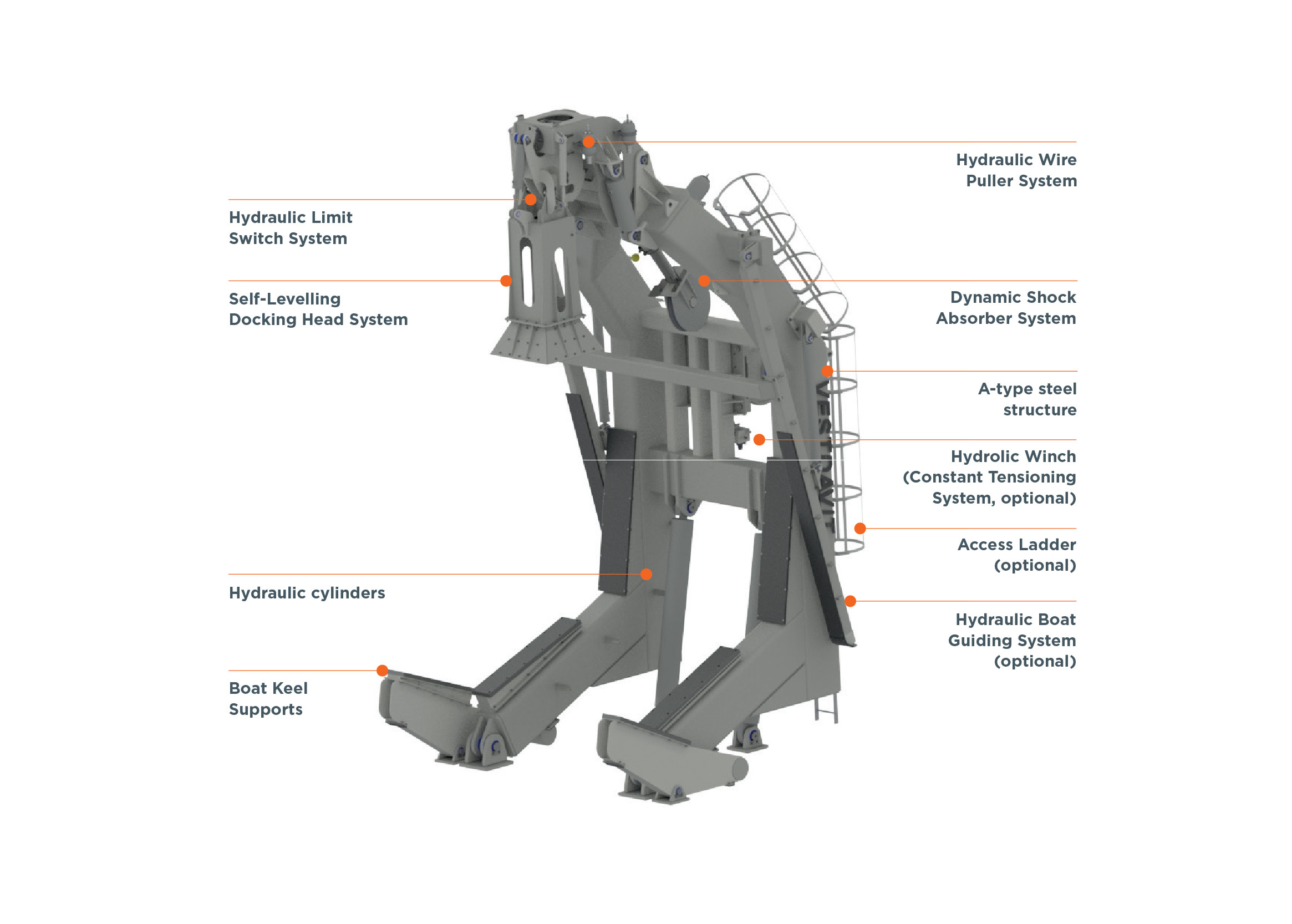

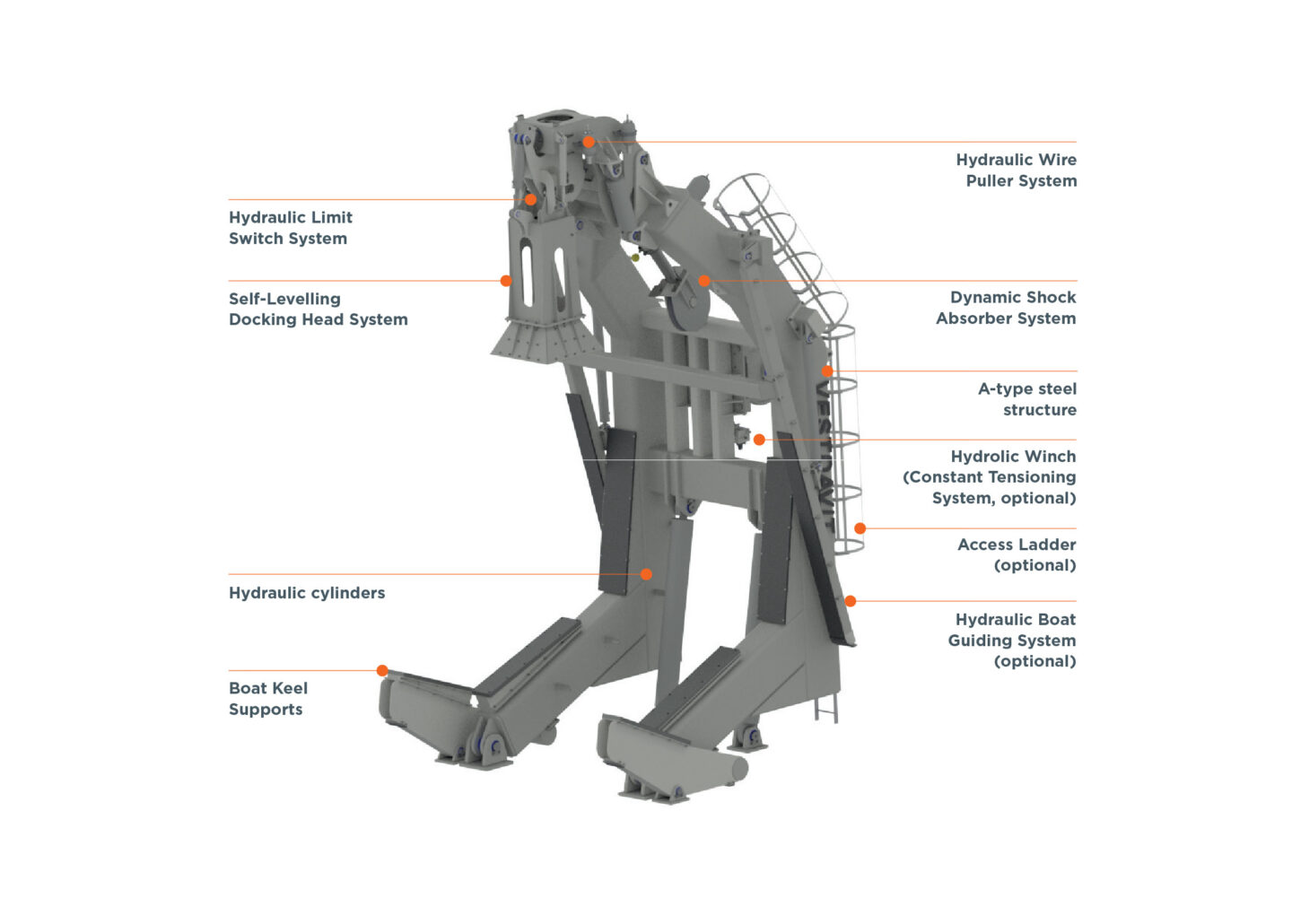

PAP Davit
Download CAD File
Central to this series is the fully integrated docking head, which is engineered with three-dimensional movement compensation. This feature minimizes pendulation swaying caused by waves and motion during both outboard and inboard manoeuvres, providing unmatched stability for precise and controlled handling. With reliability proven in both military and commercial applications, the PAP Series has become a trusted choice for demanding maritime operations. Its compatibility with Vestdavit’s Painter Boom systems enhances its functionality by enabling improved guidance and alignment during deployment and retrieval, even in challenging sea conditions. This integrated setup optimizes safety and efficiency, ensuring that vessels remain properly aligned, secured, and protected throughout their operational use.
Features
- Docking head
- Shock absorber
- Constant Tension System
- Wire puller
- Limit switch
Optional Features
- Winch Speed 40m/min
- Dead ship emergency lowering in accordance with Seismic Emergency Regulations
- Stainless steel fittings
- Control stand
- Control station
- Multi Keel Support
- Submerged HPU (or top mounted for outdoor placement)
- HPU stainless tank
- Soft starter
- Stainless steel starter for outdoor placement
- Metallization
- Enclosed Inspection Ladder
- Remote Control (wired or wireless)
- Skid
- Hydraulic Guiding arms
- -40 degrees winterisation
PAP Davit Specifications
| Approvals | DNV. Other class societies on request |
| Capacity | 2000-20000 kg |
| Certificate | CE marking according to the Marine Equipment Directive |
| Optional Equipment | Dynamic Shock Absorber, Wave Compensation System, Hydraulic Wire Puller, Hydraulic Limit Switch, Remote Control Operated PLC |
| Power | Hydraulic Power with stored power via accumulators in accordance with SOLAS |
| Typical Users | Commercial & Military Vessels |
Product Models
| Model | PAP-6000 | AP-6500 | PAP-7500 | PAP-9000 | PAP-16000 |
|---|---|---|---|---|---|
| Med Cert. | Yes | Yes | Yes | Yes | No |
| MWL | 6000 | 6500 | 7500 | 9000 | 16000 |
| Total travel (outreach) | 4972 | 4969 | 4019 | 4017 | 5431 |
| Inst. Height, Stored Pos (mm) | 4842 | 5147 | 6116 | 6217 | 7632 |
| Estimated Std Weight (kg) | 6570 | 7150 | 7800 | 8100 | 18380 |
| Std. Max Hoist Speed (m/min) | 0-36 | 0-36 | 0-36 | 0-36 | 0-30 |
| Estimated Std Power Cons. (kW) | 70 | 74 | 93 | 119 | 172 |
| SOLAS | Optional | Optional | Optional | Optional | Optional |
| Opt Max Hoist Speed (m/min) | 0-60 | 0-60 | 0-50 | 0-50 | 0-40 |
ⓘ
All data presented in this table are indicative and minor deviations may occur.
Data may be subject to change based on final system configuration
