Single Point Davits
A single point davit is a compact and efficient launch and recovery system designed to handle small boats, life rafts, and other maritime equipment
using a single lifting point. These davits are widely used in the naval, offshore, commercial, search and rescue industries, offering reliable and safe deployment solutions even in challenging conditions.
Single point davits are a crucial component in the maritime industry, providing a fast, reliable, and safe solution for launching and recovering boats and life rafts. Whether used for emergency evacuations, rescue missions, or military operations, these davits enhance operational efficiency while ensuring the safety of personnel at sea.
Show more
PL Davit
PLR Davit
PLD Davit
PLi Davit
PAP Davit
PAPH Davit
PLA Davit
PLAR Davit
L Davit
PAPH Davit
Download CAD File

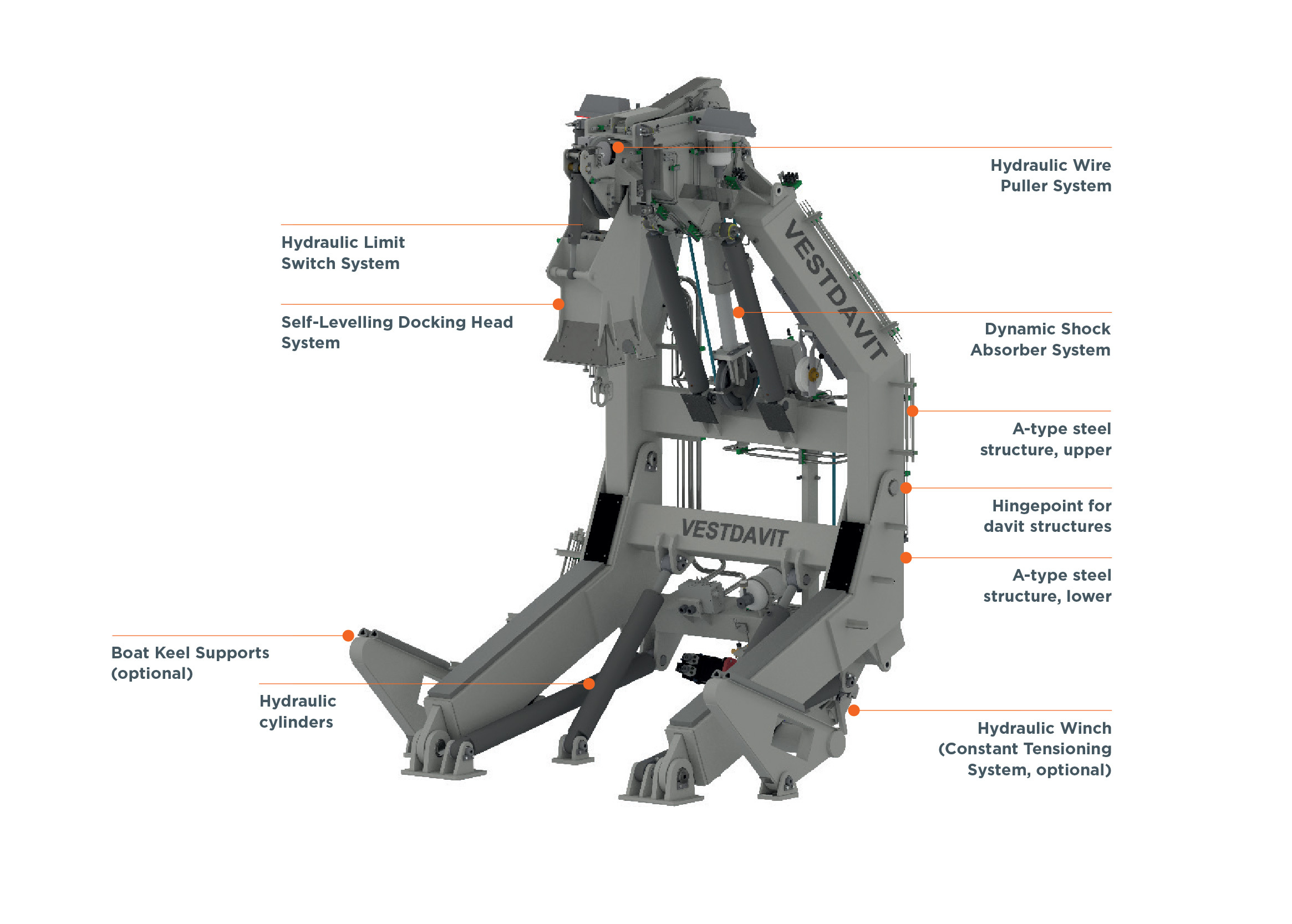

This sophisticated series is equipped with an integrated docking head and a unique set of additional hinges, which collectively allow for a remarkable range of movement beyond that of standard davits. This extensive movement capacity makes the PAPH Series particularly well-suited for vessels with limited deck or structural space, where manoeuvrability is crucial. Vestdavit’s PAPH Series actively manages pendulation and collision control, enabling precise positioning of the deployed craft. This intelligent control system is particularly beneficial in rough sea conditions, where it safeguards both crew and vessel during launch and recovery operations by optimizing movement in real time. The PAPH Series reflects Vestdavit’s commitment to delivering innovative, space-efficient solutions without compromising on reliability, safety, or operational performance.
Features
- Docking head
- Shock absorber
- Constant Tension System
- Wire puller
- Limit switch
- Remote control (wired or wireless)
- PLC control
- Linear sensor in cylinders
Optional Features
- Winch Speed 40m/min
- Dead ship emergency lowering in accordance with Seismic Emergency Regulations
- Stainless steel fittings
- Control stand
- Control station
- Multi Keel Support
- Submerged HPU (or top mounted for outdoor placement)
- HPU stainless tank
- Soft starter
- Stainless steel starter for outdoor placement
- Metallization
- Enclosed Inspection Ladder
- Skid
- -40 degrees winterisation
PAPH Davit Specifications
| Approvals | DNV. Other class societies on request |
| Capacity | 3000-20000 kg |
| Certificate | CE marking according to the Marine Equipment Directive |
| Optional Equipment | Dynamic Shock Absorber, Wave Compensation System, Hydraulic Wire Puller, Hydraulic Limit Switch, Remote Control Operated PLC |
| Power | Hydraulic Power with stored power via accumulators in accordance with SOLAS |
| Typical Users | Pilot HQ Vessels, Major Warships (FF equivalent or greater) |
Product Models
| Model | PAPH-7000 |
|---|---|
| Med Cert. | Yes |
| MWL | 7000 |
| Total travel (outreach) | 4805 |
| Inst. Height, Stored Pos (mm) | 4786 |
| Estimated Std Weight (kg) | 7600 |
| Std. Max Hoist Speed (m/min) | 0-36 |
| Estimated Std Power Cons. (kW) | 86 |
| SOLAS | Optional |
| Opt Max Hoist Speed (m/min) | 0-60 |
ⓘ
All data presented in this table are indicative and minor deviations may occur.
Data may be subject to change based on final system configuration
