Single Point Davits
A single point davit is a compact and efficient launch and recovery system designed to handle small boats, life rafts, and other maritime equipment
using a single lifting point. These davits are widely used in the naval, offshore, commercial, search and rescue industries, offering reliable and safe deployment solutions even in challenging conditions.
Single point davits are a crucial component in the maritime industry, providing a fast, reliable, and safe solution for launching and recovering boats and life rafts. Whether used for emergency evacuations, rescue missions, or military operations, these davits enhance operational efficiency while ensuring the safety of personnel at sea.
Show more
PL Davit
PLR Davit
PLD Davit
PLi Davit
PAP Davit
PAPH Davit
PLA Davit
PLAR Davit
L Davit

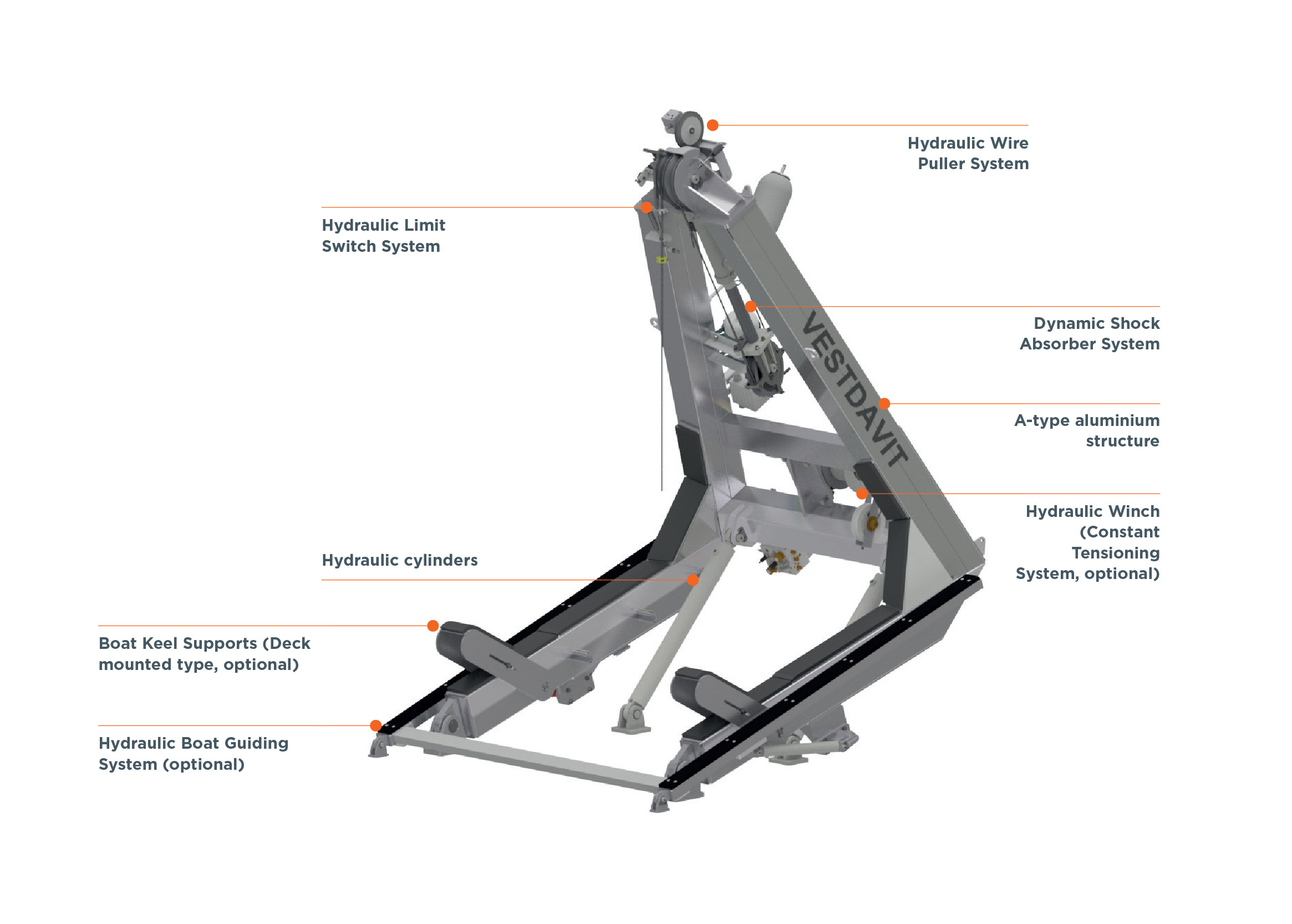

PLA Davit
Download CAD File
Also, the compact footprint of the A-frame design ensures efficient use of deck space, making it a suitable choice for both small and large vessels that require reliable launch and recovery systems without compromising valuable deck area. The PLA davit is constructed from high grade aluminium, making it lightweight yet highly durable. The use of aluminium significantly reduces the overall weight of the davit compared to traditional steel constructions, making it an ideal choice for weight sensitive vessels such as patrol boats, navy ships, and offshore support vessels. The PLA series is fully hydraulically operated, ensuring precise and controlled lifting, lowering, and launching of boats. This system provides consistent and smooth movements, reducing stress on both the davit and the vessel. The hydraulic mechanism allows for rapid deployment and recovery, which is crucial in emergency situations, military operations, and offshore activities where time is of the essence.
Features
- Shock Absorber
- Standard Keel Support
- Metallization
- Hydraulic guiding arms
- Wire puller
- Limit switch
Optional Features
- SOLAS
- Constant Tension System
- Stainless steel fittings
- Control stand
- Control station
- Submerged HPU (or top mounted for outdoor placement)
- HPU stainless steel tank
- Soft starter
- Stainless steel starter for outdoor placement
- Remote Control (wired or wireless)
- Skid
- Speed 50 m/min
- -40 degrees winterisation
PLA Davit Specifications
| Approvals | DNV. Other class societies on request |
| Capacity | 2000-6000 kg |
| Certificate | CE marking according to the Marine Equipment Directive |
| Optional Equipment | Self Tension, Line Puller, Hydraulic End Stop, Remote Control |
| Power | Hydraulic Power with stored power via accumulators in accordance with SOLAS |
| Typical Users | Fast Patrol Boats |
Product Models
| Model | PLA-2500 |
|---|---|
| Med Cert. | Yes |
| MWL | 2500 |
| Total travel (outreach) | 2996 |
| Inst. Height, Stored Pos (mm) | 4095 |
| Estimated Std Weight (kg) | 1750 |
| Std. Max Hoist Speed (m/min) | 0-36 |
| Estimated Std Power Cons. (kW) | 31 |
| SOLAS | Yes |
| Opt Max Hoist Speed (m/min) | 0-40 |
ⓘ
All data presented in this table are indicative and minor deviations may occur.
Data may be subject to change based on final system configuration
