Single Point Davits
A single point davit is a compact and efficient launch and recovery system designed to handle small boats, life rafts, and other maritime equipment
using a single lifting point. These davits are widely used in the naval, offshore, commercial, search and rescue industries, offering reliable and safe deployment solutions even in challenging conditions.
Single point davits are a crucial component in the maritime industry, providing a fast, reliable, and safe solution for launching and recovering boats and life rafts. Whether used for emergency evacuations, rescue missions, or military operations, these davits enhance operational efficiency while ensuring the safety of personnel at sea.
Show more
PL Davit
PLR Davit
PLD Davit
PLi Davit
PAP Davit
PAPH Davit
PLA Davit
PLAR Davit
L Davit
PLAR Davit
Download CAD File
Recent insights highlight that the longstanding preference for aluminium davits among navies, coast guards, and fast ferry operators is now extending into new markets, driven by the material’s weight advantages over traditional steel. Aluminium davits are increasingly appealing to a broader range of vessel owners as a structural alternative, offering benefits that support faster, more agile craft. The lighter aluminium structure has been selected by operators of fast patrol boats, such as the Royal Australian Navy’s Cape Class vessels, the Royal New Zealand Navy, the Danish Navy, the Swedish Navy, the U.S. Coast Guard, and more. Recently, security-focused authorities in the Middle East and South Asia have also turned to aluminium davits for fast-response applications within the 850–7,000 kg safe working load range provided by Vestdavit.
Features
- Shock Absorber
- Standard Keel Support
- Metallization
- Hydraulic guiding arms
- Wire puller
- Limit switch
Optional Features
- SOLAS
- Constant Tension System
- Stainless steel fittings
- Control stand
- Control station
- Submerged HPU (or top mounted for outdoor placement)
- HPU stainless steel tank
- Soft starter
- Stainless steel starter for outdoor placement
- Remote Control (wired or wireless)
- Skid
- Speed
- 50 m/min
- -40 degrees winterisation

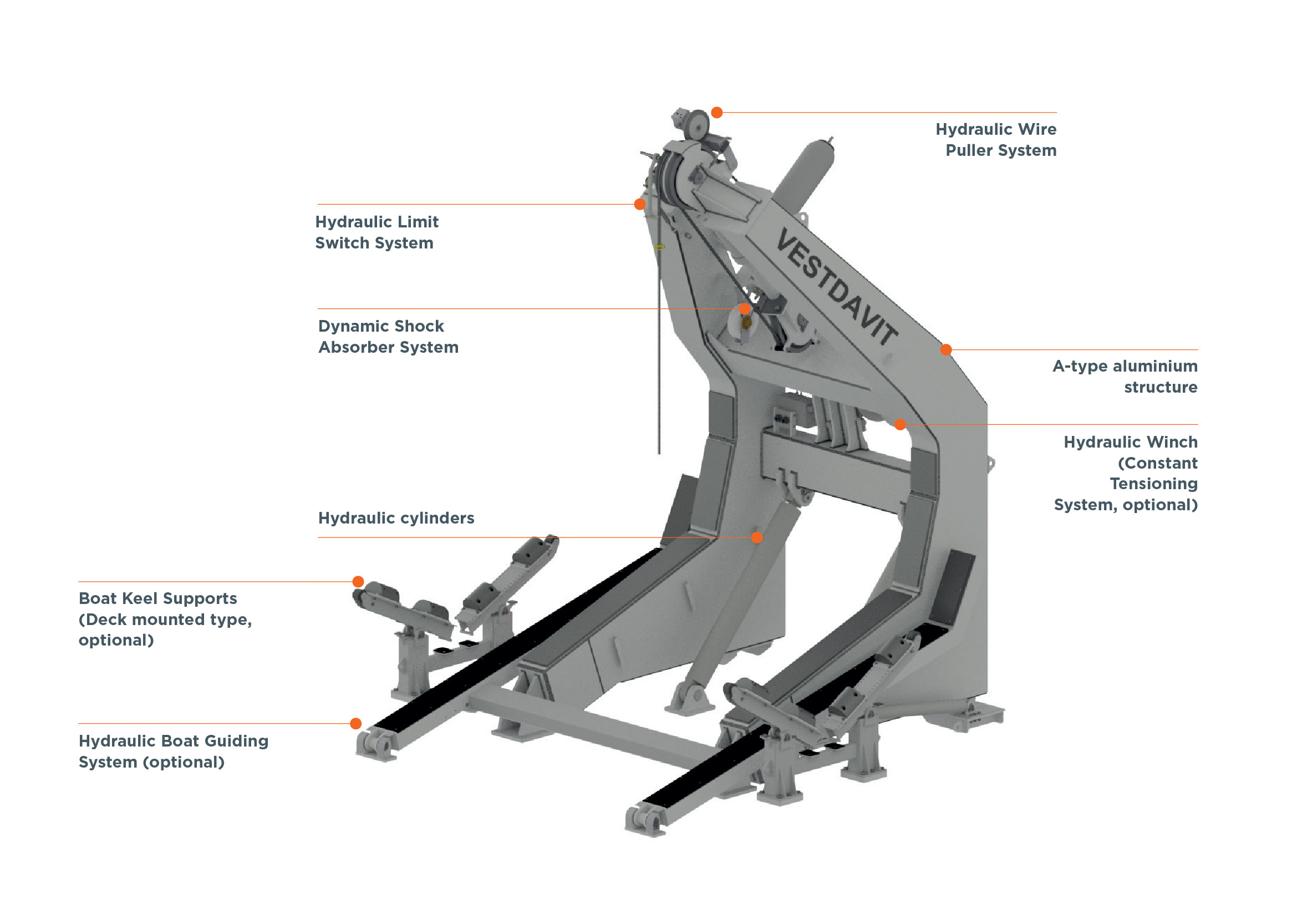

PLAR Davit Specifications
| Approvals | DNV. Other class societies on request |
| Capacity | 2000-7000 kg |
| Certificate | CE marking according to the Marine Equipment Directive |
| Optional Equipment | Dynamic Shock Absorber, Wave Compensation System on winch, Hydraulic Wire Puller, Hydraulic Limit Switch, Remote Operated PLC |
| Power | Hydraulic Power with stored power via accumulators in accordance with SOLAS |
| Typical Users | Military Inshore and Offshore Patrol Vessels. Law Enforcement Interceptor Vessels |
Product Models
| Model | PLAR-3600 | PLAR-4501 | PLAR-6501 |
|---|---|---|---|
| Med Cert. | Yes | Yes | Yes |
| MWL | 3600 | 4500 | 6500 |
| Total travel (outreach) | 3466 | 3411 | 3752 |
| Inst. Height, Stored Pos (mm) | 4324 | 4204 | 4588 |
| Estimated Std Weight (kg) | 2000 | 2300 | 3200 |
| Std. Max Hoist Speed (m/min) | 0-36 | 0-36 | 0-36 |
| Estimated Std Power Cons. (kW) | 43 | 55 | 74 |
| SOLAS | Yes | Yes | Optional |
| Opt Max Hoist Speed (m/min) | 0-60 | 0-60 | 0-60 |
ⓘ
All data presented in this table are indicative and minor deviations may occur.
Data may be subject to change based on final system configuration
