Single Point Davits
A single point davit is a compact and efficient launch and recovery system designed to handle small boats, life rafts, and other maritime equipment
using a single lifting point. These davits are widely used in the naval, offshore, commercial, search and rescue industries, offering reliable and safe deployment solutions even in challenging conditions.
Single point davits are a crucial component in the maritime industry, providing a fast, reliable, and safe solution for launching and recovering boats and life rafts. Whether used for emergency evacuations, rescue missions, or military operations, these davits enhance operational efficiency while ensuring the safety of personnel at sea.
Show more
PL Davit
PLR Davit
PLD Davit
PLi Davit
PAP Davit
PAPH Davit
PLA Davit
PLAR Davit
L Davit
PLi Davit
Download CAD File

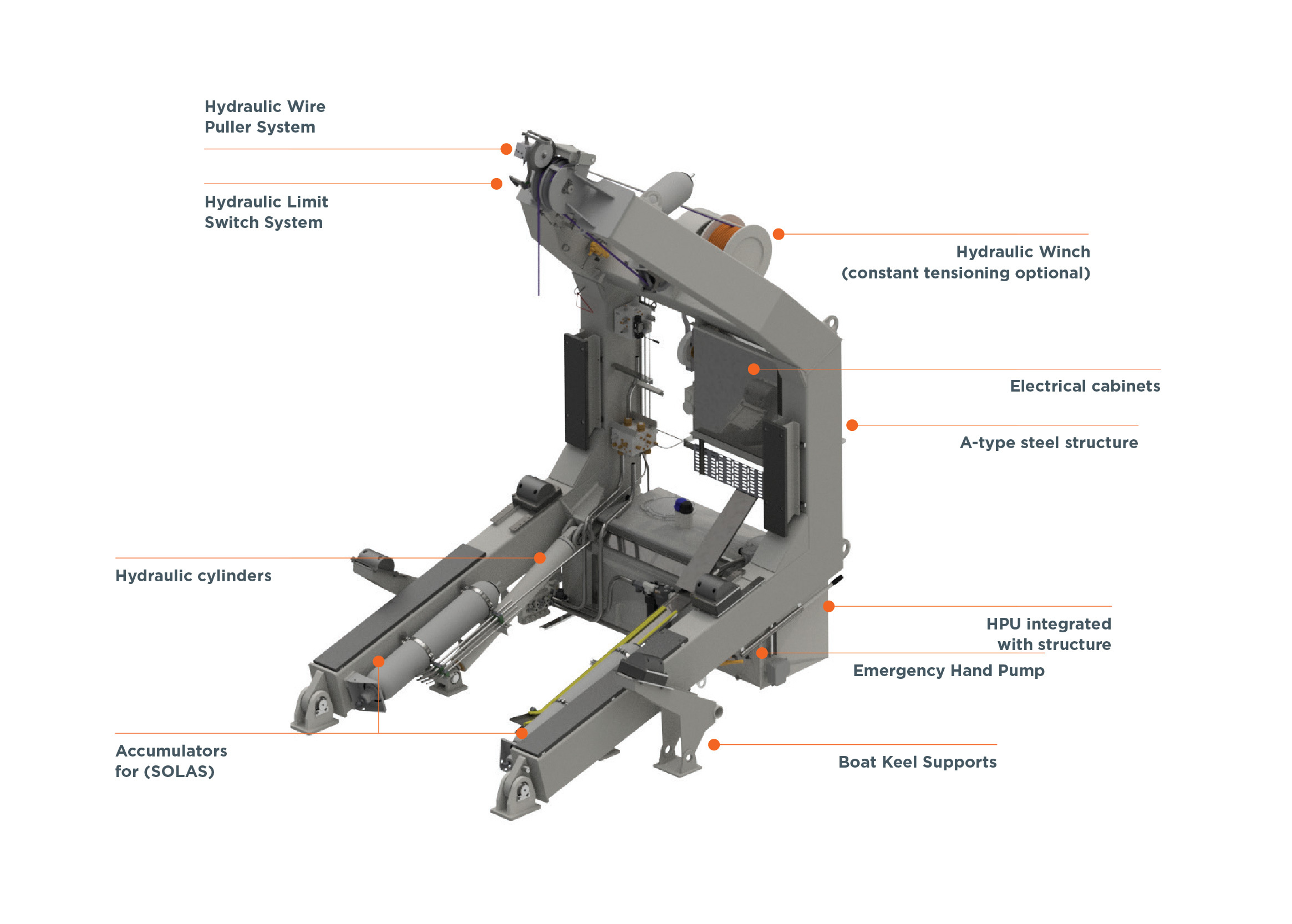

Characterized by its compact design and lightweight structure, the PLi Series ensures seamless integration onboard, particularly where deck space is limited, or weight distribution is crucial. This davit system is engineered for simplicity and efficiency in installation. All essential equipment, including the hydraulic power unit (HPU) and control systems, is pre-installed and rigorously tested within the structure before delivery, ensuring that the entire unit arrives as a single, ready-to-install package. This reduces setup complexity and saves valuable time for shipyards and operators.
Features
- SOLAS
- Shock Absorber
- Remote (wired)
- Stainless steel starter
Optional Features
- Stainless steel fittings
- Stainless steel starter for outdoor placement
- Metallization
- -40 degrees winterisation
PLi Davit Specifications
| Approvals | DNV. Other class societies on request |
| Capacity | 2000-4000 kg |
| Certificate | CE marking according to the Marine Equipment Directive |
| Optional Equipment | Hydraulic Shock Absorbers |
| Power | Hydraulic Power with stored power via accumulators in accordance with SOLAS |
| Typical Users | Ferries, High Speed Ferries, Fishing Vessels, Merchant Vessels |
Product Models
| Model | PLi-2000 | PLi-4000 |
|---|---|---|
| Med Cert. | Yes | Yes |
| MWL | 2000 | 4000 |
| Total travel (outreach) | 3083 | 4047 |
| Inst. Height, Stored Pos (mm) | 3392 | 4308 |
| Estimated Std Weight (kg) | 1880 | 4150 |
| Std. Max Hoist Speed (m/min) | 0-36 | 0-36 |
| Estimated Std Power Cons. (kW) | 29 | 48 |
| SOLAS | Yes | Yes |
| Opt Max Hoist Speed (m/min) | 0-50 | 0-60 |
ⓘ
All data presented in this table are indicative and minor deviations may occur.
Data may be subject to change based on final system configuration
